JL-CSWG fiberglass mesh weaving machine is a process of glass fiber materials, woven mesh, fiber glass safety net, wall protection network, mosaic backing with glass fiber mesh equipment. this machine can produce 1.0m, 1.2 m, 1.5 m, 2.0 m, 2.3 m, 2.4 m kinds of width specifications; mesh density is adjustable between 4 and 12 ; Compared with the traditional machine,this machine has the characteristic of high quality,high speed,low noise,low power,mesh accurate and good stability.A worker can operate 3-6 machines. A machine can produce two or more of the network products of different widths at the same time.
Warping machine
1.Power:3.0kw
2.Speed:1000m/h
3.Weight:1.8T
4.Photos:

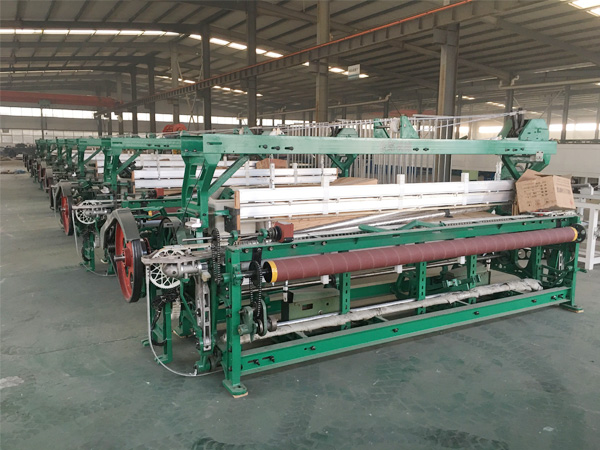

Weaving machine
1.Maximum weaving width:2.0m
2.Power:1.5kw
3.Speed:90-110 s.q m/h
4.Over size:2000x3100x1500mm
5.Weight:2.0T

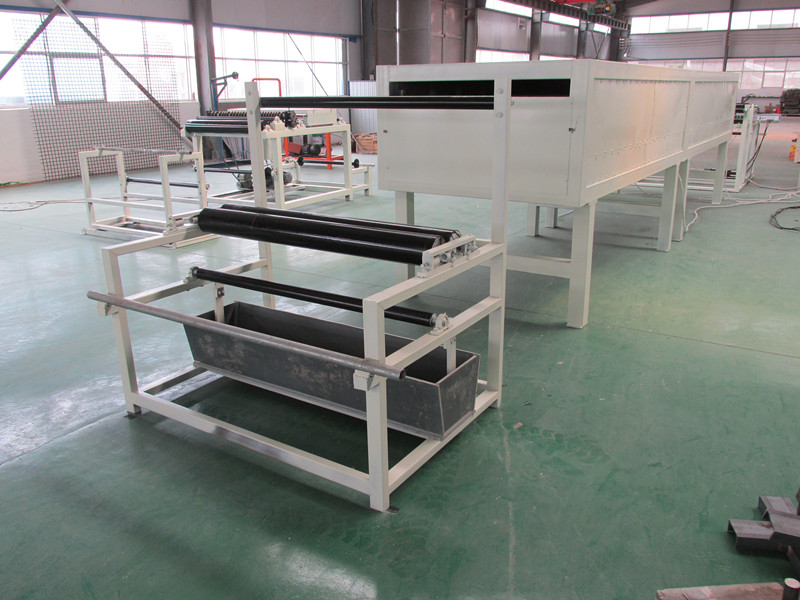

Fiberglass mesh coating machine
1.Control mode: electrical control cabinet
2.Equipment power: 35 kw
3.Heating time: 10-20 minutes
4.Production equipment: 700-1000 sq.m/h
5.Speed control: speed motor control.
6.Coating width: 1.0 m (can be customized)
8.Equipment weight: 3.5T
